FPF2004
Manufacturer:
On Semiconductor
Mfr.Part #:
FPF2004
Datasheet:
Description:

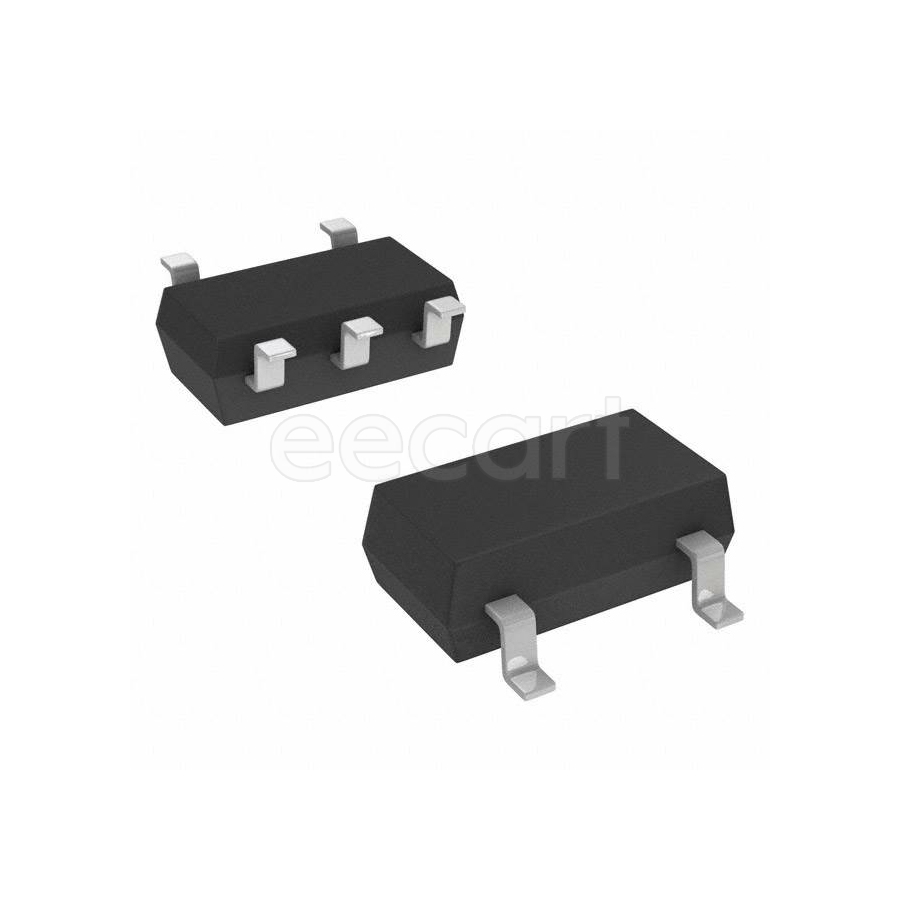

Power Switch ICs - Power Distribution SC-70-5 SMD/SMT Turn-On Delay Time:50 µs Turn-Off Delay Time:500 ns 1.2 Ω
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Resistance | 700 mΩ |
| Power Rating | 250 mW |
| Height | 1 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 5.5 V |
| Type | Load Switches |
| Current | 200 mA |
| Interface | On/Off |
| Min Input Voltage | 1.8 V |
| Output Current | 100 mA |
| Output Voltage | 6 V |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Output Type | P-Channel |
| Max Power Dissipation | 250 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Power Dissipation | 250 mW |
| Max Output Current | 100 mA |
| Turn-On Delay Time | 50 µs |
| Turn-Off Delay Time | 500 ns |
| Number of Inputs | 1 |
| Output Configuration | High Side |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Fall Time | 100 ns |
| Rise Time | 10 µs |
| Min Current Limit | 100 mA |
| Nominal Input Voltage | 5.5 V |
| Drain to Source Resistance | 700 mΩ |
| Fault Protection | Over Temperature |
| Schedule B | 8542390000 |
| On Resistance (RON) | 1.2 Ω |
| Ratio - Input:Output | 1:1 |
| Current Limit | 100 mA |
Stock: 22618
Distributors
pcbx
pcbxUnit Price$1.05156
Ext.Price$1.05156
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05156 | $1.05156 |
| 10 | $0.65744 | $6.57440 |
| 25 | $0.54801 | $13.70025 |
| 50 | $0.48351 | $24.17550 |
| 100 | $0.42661 | $42.66100 |
| 300 | $0.37956 | $113.86800 |
| 500 | $0.33770 | $168.85000 |
| 1000 | $0.30264 | $302.64000 |
| 3000 | $0.27956 | $838.68000 |
